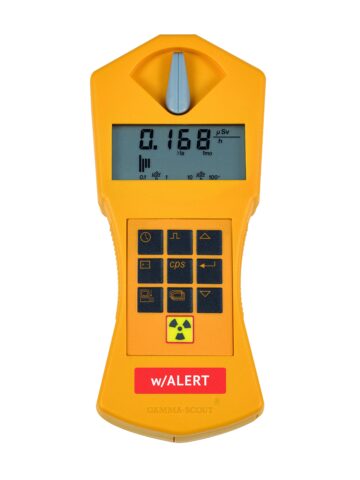

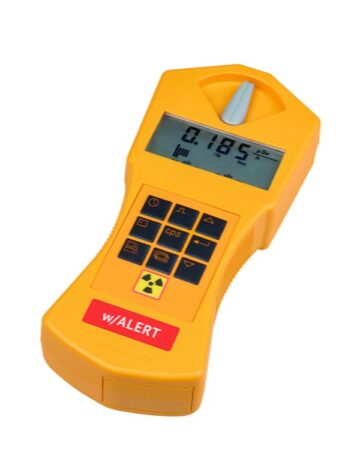

Gamma Scout incl. Alarm and Ticker
Beschreibung von Gamma Scout incl. Alarm and Ticker
Extension version with limit warning and ticker for acoustic indication of radiation. Within limits, the user can set a threshold value. If this value is exceeded, the GAMMA-SCOUT emits a warning tone and puts a warning signal on the display. In addition, it contains all the functions of the standard model.
Alarm Thresholds for Dose Rate and Dose:
Gives an acoustic signal when radiation above a defined threshold is detected.
An acoustic signal for each detected pulse.
In measurement mode the current dose rate (a measure for ionizing radiation) or the average dose rate of the last day is displayed every 2 seconds (0:00-23:59)
Patented Energy Saving Concept:
The Gamma-Scout® monitors the radiation day and night and stores the values for later readout. Thanks to sophisticated, patented electronics, the battery will last for years. The RECHARGEABLE model works with rechargeable batteries. When connected to the PC, the device is supplied with power via the USB interface – this saves the battery or charges the battery.
Measures α Radiation:
Thanks to a high-quality LND end window counter, the Gamma-Scout measures α, β and γ radiation.
Wide Measuring Range:
According to calibration, the GAMMA-SCOUT measures reliably over a wide range (0.1 up to 1,000 microSievert/h). The measuring range of the counter tube is much larger, but the device is calibrated with specified accuracy.
Every GAMMA-SCOUT measuring instrument is subjected to a final test, which is supervised by the Institute for Radiation Protection of a state technical college. The test items must be within the 5% confidence interval against a master, which in turn has been calibrated against a tested Cs 137 emitter and the ODL.
Dose Rate and Dose:
GAMMA-SCOUT is also a dosimeter (cumulated radiation over time).
GAMMA-SCOUT stores occurred pulses in different adjustable time intervals (up to 32,000 readings). For permanent monitoring, the storage of environmental values is set to one value every 2h, which would correspond to a recording period of 7 years.
Data Readout via Microsoft WINDOWS:
The stored values can be read out and evaluated under Microsoft Windows (WIN 7 up to WIN 10) using the enclosed TOOLBOX software.
Data Readout via MAC OS X:
The stored values can be read out and evaluated under Mac OS X using the Gamma-Scout READER software supplied.
The display can be shown in Sievert or Rem.
Permitted on flights:
The GAMMA-SCOUT (R) can be carried on board of airplanes.
The GAMMA-SCOUT(R) complies with Section 15 of the US FCC rules.
Source Isotope not equal to CS 137:
The conversion of pulses per time to dose rate is based on Cs 137. In case other isotopes are present, the pulses per time can be displayed directly and converted according to your own tables.
Length 163 mm x width 72 mm x height 30 mm
